Pull the mode door actuator an see if the door move s freely not binding.

2014 ford fusion mode door actuator location. From what i ve read this sounds like the blend door actuator but i m unsure of the location on my model. Disconnect the defrost panel floor mode door actuator electrical connector. During an actuator calibration cycle the hvac module drives the defrost panel floor mode door until the door reaches both internal stops in the hvac case. If the defrost panel floor mode door is temporarily obstructed or binding during a calibration cycle the hvac module may interpret this as the actual end of travel for the door.

An actuator can go bad in of two ways. I have air only coming through the head face vents even when i have the floor and or defog vents selected. An the blend door controls the temp. Where is the blend door actuator on a 2014 ford escape titanium 2 0.

The actuator is a small electrical motor that moves the temp mode doors inside the heater case to control from hot air to cold air. Posted by angela jacks on. This is a rear temp blend door or mode actuators. On top of low prices advance auto parts offers 1 different trusted brands of air blend door actuator products for the 2014 ford fusion.

First the electric motor can burn out rendering the unit non responsive so nothing changes when the temperature or. The actuators are located behind the pass side rear 1 4 trim 1 on. Hot and cold selection still works fine. Where is the mode actuator located in a 2014 ford expedition xlt.

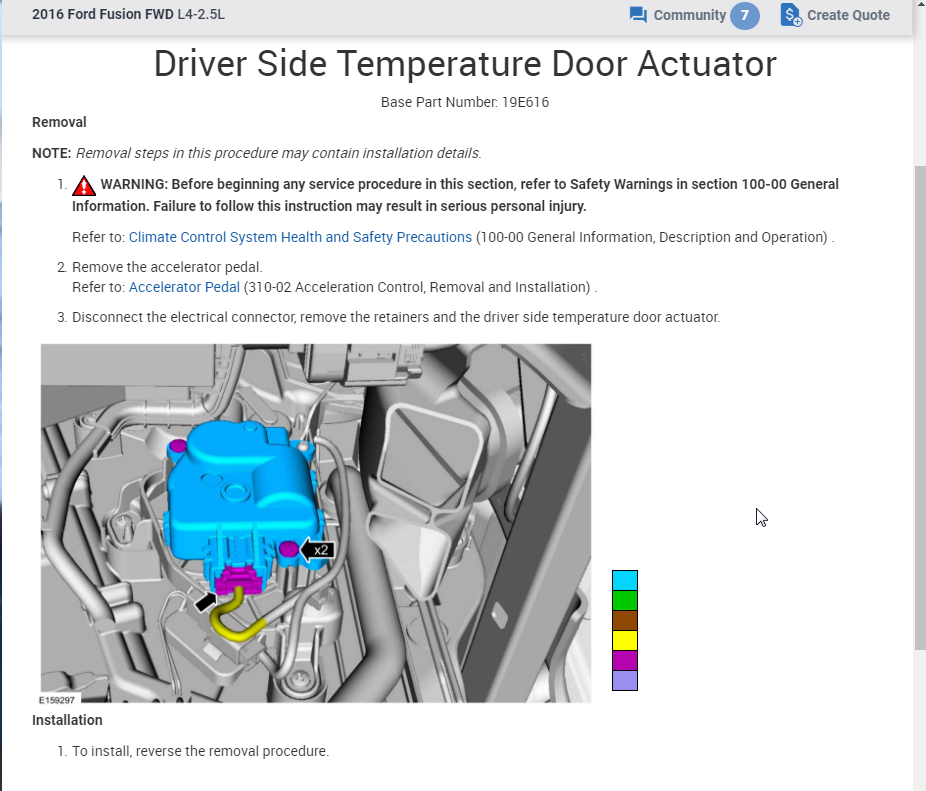

The upper rear defrost panel floor mode door actuator screw can be accessed through the instrument panel cluster ipc opening using a swivel type socket and extension. A blend door actuator is made up of an electric motor that turns a plastic gear set in one direction or another which is connected to an air control door pivot at the final drive of the unit. Door controls where air comes out of defroster vent floor etc. Remove the 3 defrost panel floor mode door actuator screws.
